WA-1000 Window Panels

commercial insulated window panels and window screens

The economical answer to make those cold windows more energy efficient.

Slide panels across  your windows for:

  • Warmth in winter
  • Cooling in summer
  • Room darkening for Visual aids
  • Noise barriers for Audio productions
  • Privacy & security

Very quick paybacks on initial investment

Fabric Can be used as bulletin boards and porcelain enamel as marker board.

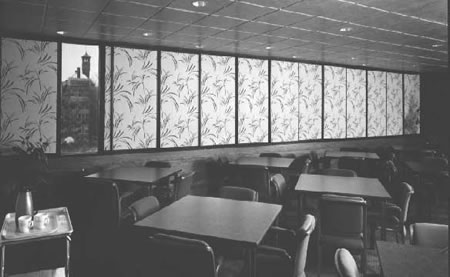

view of commercial window panels



Gives building exteriors a clean and neat  appearance. No water stained drapes or blinds pulled in all directions.

Insulates like six layers of glass.

Exceptional sealing  ability independently tested to  .015 CFM per foot of crack. Meets new window specifications.

All-aluminum frames, tracks and panels never require painting.

Single glass and insulated glass inserts provided upon request.







Technical Details:

All window panels have maintenance free clear anodized frames and track.

Panel thickness 1 1/4″   Maximum panel width 5′   Maximum panel height 10′

Panel makeup:
An acoustical fabric face and an exterior aluminum face are laminated to a core of 1″ thick 4.7#  fiberglass insulation.

Options:
Special facings, built in doors, glass inserts and marker boards.

Interior Stationary and sliding window panels
